Introduction
The spiral phase plate (SPP) is a new type of diffractive optical element that can produce a special light field with vortex. The vortex beam generated by an incident plane wave passing through the SPP is a special light field with phase singularity, a helical wavefront and a certain orbital angular momentum.
Custom Instructions
UPOLabs can provide customers with spiral phase plates of different wavelengths and sizes. The default is based on the quartz glass material, and the continuous surface type is designed and processed based on the Gaussian mode.
1. Default quartz rock material, please contact us if you have special material requirements.
2. Standard products can be supplied from stock within 6-8 weeks.
3. Topology load number is optional
How to buy
| Example of typical product parameters | |||
| Incident light parameters | wavelength | 532, 632, 808, 1064nm and other wavelengths can be customized | |
| model | Gaussian mode TEM00 | ||
| Outgoing light parameters | topological charge | 1¡¢2£¨If you need to customize other topological loads, please contact the technical consultant£© | |
| transmittance | £¾92% | ||
| Diffraction efficiency | £¾90% | £¾98% | |
| Component parameters | Material | Quartz, silicon, silicon carbide, etc. | |
| Device size | 6*6¡¢11*11mm | ||
| Effective area | £¾5*5¡¢10*10mm | ||
| thickness | 1mm | ||
| structural surface | continuous | ||
| depth error | ¡À30nm | ||
| Membrane | Uncoated | C: AR Coating | |

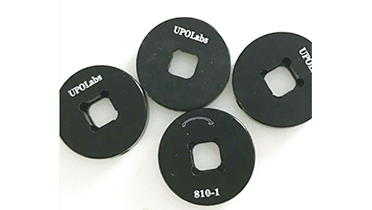

The standard product is installed with an aluminum alloy bracket with a diameter of 25.4mm, which is suitable for a standard adjustment frame. The performance parameters are shown in the table. When purchasing, please pay attention to whether the above parameter information can meet your project needs. Model code description: LETO-wavelength-size specification-topological charge-C stands for coating.
Type
| Standard Type | Wavelength | Specifications | Lead Time |
| LETO-532-6*6-1-C | 532nm | Topological Charge 1, Coating | In stock, within 1 week |
| LETO-532-6*6-2-C | 532nm | Topological Charge 2, Coating | In stock, within 1 week |
| LETO-532-11*11-1-C | 532nm | Topological Charge 1, Coating | In stock, within 1 week |
| LETO-532-11*11-2-C | 532nm | Topological Charge 2, Coating | In stock, within 1 week |
| LETO-632.8-6*6-1-C | 632.8nm | Topological Charge 1, Coating | In stock, within 1 week |
| LETO-632.8-6*6-2-C | 632.8nm | Topological Charge 2, Coating | In stock, within 1 week |
| LETO-632.8-11*11-1-C | 632.8nm | Topological Charge 1, Coating | In stock, within 1 week |
| LETO-632.8-11*11-2-C | 632.8nm | Topological Charge 2, Coating | In stock, within 1 week |
| LETO-808-6*6-1-C | 808nm | Topological Charge 1, Coating | In stock, within 1 week |
| LETO-808-6*6-2-C | 808nm | Topological Charge 2, Coating | In stock, within 1 week |
| LETO-808-11*11-1-C | 808nm | Topological Charge 1, Coating | In stock, within 1 week |
| LETO-808-11*11-2-C | 808nm | Topological Charge 2, Coating | In stock, within 1 week |
| LETO-1064-6*6-1-C | 1064nm | Topological Charge 1, Coating | In stock, within 1 week |
| LETO-1064-6*6-2-C | 1064nm | Topological Charge 2, Coating | In stock, within 1 week |
| LETO-1064-11*11-1-C | 1064nm | Topological Charge 1, Coating | In stock, within 1 week |
| LETO-1064-11*11-2-C | 1064nm | Topological Charge 2, Coating | In stock, within 1 week |
| LETO-905-11*11-1 | 905nm | Topological charge 1, uncoated | In stock, within 1 week |
| LETO-1550-11*11-1 | 1550nm | Topological charge 1, uncoated | In stock, within 1 week |
Note: The model definition of LETO series spiral phase plate is as follows: brand series + wavelength + optical aperture + topological charge + coating C, without C is uncoated.
