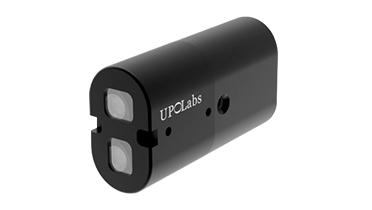

Dual Channel Laser
The dual-channel laser is mainly used for positioning, marking and fast measurement, and uses 2 independently controlled channels to emit the required laser structured light.
No file to download.
Contact us ：sales@realic.cn
Specifications
| Laser wavelength(nm) | 450nm、532nm、650nm、658nm、638nm |
| Output power range | 10mW～200mW |
| Angle | 15° ~ 150° |
| Laser working distance range(mm) | 10mm~2500mm，Best Center Working Distance Default Design50-500，custom design＜2500mm |
| Minimum line width of laser line | 0.02~0.3mm |
| Optical pattern | line, cross |
| Supply voltage(V)+/-5% | 2.5~12,9~24 |
| Supply current(A)+/-5% | ＜400mA |
| Laser drive mode | ACC(Constant current drive) |
| Laser dimming method | PWM，TTL level，Duty cycle adjustment |
| PWM working frequency(HZ) | 0~200k |
| PWM input level(V) | high level ：3.0~5.2 low level：0~0.6 |
| PWM Working duty cycle range(%) | 1~99（Please pay attention to the heat dissipation of the laser shell when working with a large duty cycle for a long time to avoid abnormal laser overheating.） |
| PWM Duty cycle and output optical power consistency | ＞95% |
| Operating temperature | 0 – 50 °C |
| Storage temperature | -10 °C to +60 °C |
| Shell material | Black anodized aluminum, isolated (potential free) |
| Laser Safety Level | CLASS 2M |
