Laser Modules
Single Channel Laser
Specifications
| LETO-C12 | LETO-C12A | LETO-C15C | LETO-TC18 | ||
| Optical properties | Laser wavelength(nm) | 450/650 | |||
| Optional laser line type and angle | 450nm ：1-line/3-line 9.4°/5-line 13.7°/7-line 20.4° 650nm：1-line/3-line 15°/5-line 18.72°/7-line 22.7°/rectangle 45°x60° | ||||
| Laser line long spread angle(°) | 450nm：15/30/35/40/45/50/55/80/90 650nm：55/60/90 | ||||
| Laser line straightness | >99.9% | ||||
| Minimum line width of laser line(mm) | 0.1~0.3 | ||||
| Optical power uniformity within the laser line | ＞85% | ||||
| Optical power uniformity between laser lines | ＞85% | ||||
| Laser line main line stray line optical power contrast | ＞2 | ||||
| Laser working distance range(mm) | Best Center Working Distance Default Design50-500，custom design＜2000 | ||||
| Typical output optical power of laser components(mW) | 450nm：80 650nm：80/200 | ||||
| Laser Safety Level | CLASS 2M | ||||
| Electrical Characteristics | Supply voltage(V)+/-5% | 450nm：7，650nm：5 | |||
| Supply current (The lasers are turned on in turn)(A)+/-5% | <0.2 | <0.3 | |||
| Laser drive mode | ACC(Constant current drive) | ||||
| Laser dimming method | PWM，TTL level，Duty cycle adjustment | ||||
| PWM working frequency(HZ) | 0~100K | ||||
| PWM input level(V) | high level ：3.0~5.2 low level：0~0.6 | ||||
| PWM Working duty cycle range(%) | 1~99（Please pay attention to the heat dissipation of the laser shell when working with a large duty cycle for a long time to avoid abnormal laser overheating.） | ||||
| PWM Duty cycle and output optical power consistency | ＞95% | ||||
| Structural properties | Shell material | Aluminum alloy | |||
| Surface Technology | black anodized | ||||
| Housing and Internal Electrical Signals | Electrical isolation | ||||
| Laser electrical connection | 3PIN cable | 3PIN Aviation plug | 3PIN Connector | 3PIN cable | |
| Environmental characteristics | Case temperature range(°) | -10~50 | |||
| Storage temperature range(°) | -20~70 | ||||

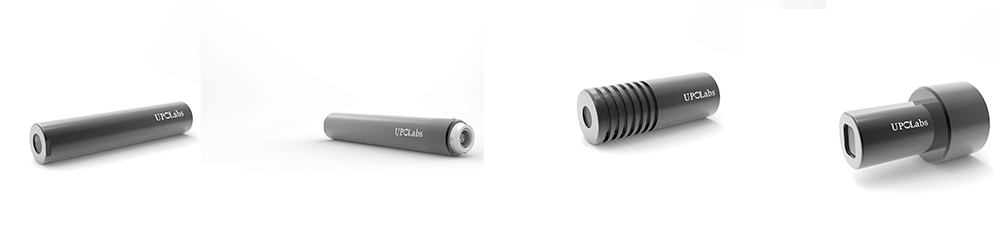

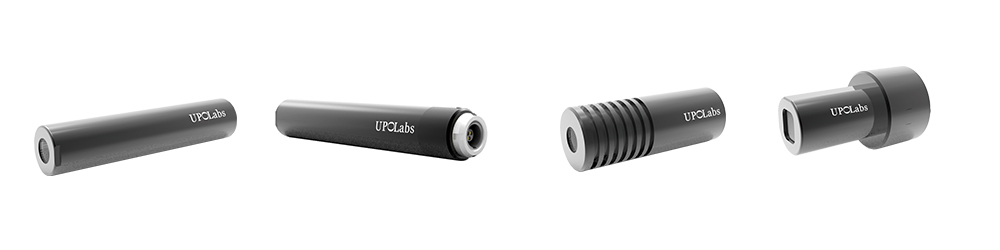

Product Image
LETO-C12&LETO-C12A&LETO-C15C&LETO-TC18
