Introduction
The version of wavelength 400-700nm, 1920*1080 resolution, 10.8µm micromirror Pitch, divided into ultra-high speed version, smart ultra-high speed version, super capacity version, the ultra-high speed version uses 16GByte/128Gbit memory, ultra-high speed frame rate > 20KHz, smart ultra-high speed version with smart algorithm, Super capacity version of on-board SSD storage, starting from 3TB, multiple capacities are optional.

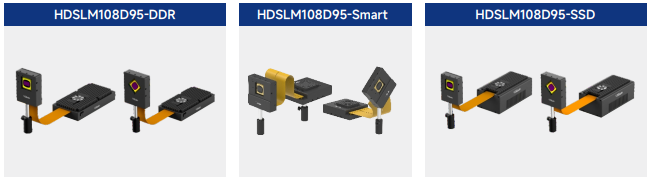

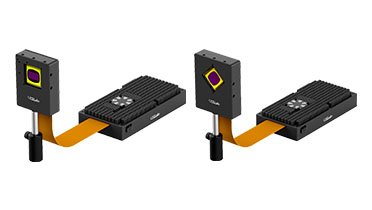

Product Image
Specifications
| Type | HDSLM108D95-DDR | HDSLM108D95-Smart | HDSLM108D95-SSD |
| Resolution | 1920*1080 | ||
| Micromirror Pitch | 10.8μm | ||
| Wavelength | 400-700nm | ||
| Array Diagonal Size | 0.95” | ||
| Micromirror Array Optical Efficiency | 87% | ||
| Reflectivity | 89% | ||
| Fill Factor | 94% | ||
| Frame Rate | 20746Hz/617.05Hz/3Hz | ||
| Bit Depth | 1-16bit | ||
| Onboard Storage | 16Gbyte | 8Gbyte | |
| Smart algorithms can be customized | / | Dynamic ground glass, random speckle, rotating grating, periodic grating, etc | / |
| RAM Capacity | / | / | SSD 3T/6T/12T |
| Configure Interface | USB2.0 | ||
| Input Interface | Gigabit Ethernet/USB3.0 | ||

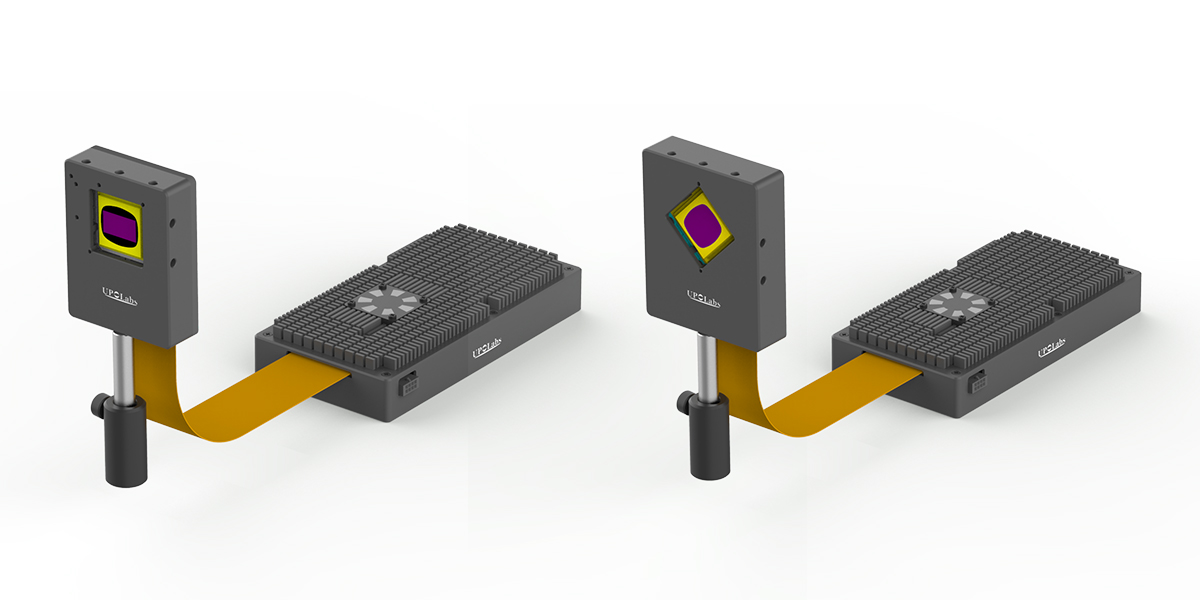

| DMD Datum Angle | Horizontal design/Oblique 45° design | Horizontal design | Horizontal design/Oblique 45° design |
| Mounting angle | / | Screen can be rotated 45° for mounting | / |
Application
Industrial
• Direct Imaging Lithography
• Digital Imaging Lithography
• Flat Panel Lithography
• Laser Marking
• Digital Plate making
• LCD and OLED Repair
• Computer to Plate Printers
• SLA 3D Printers
• 3D Scanners for Machine Vision and Factory Automation
• Selective Laser Sintering (SLS)
• Rapid Prototype Machines
• 3D Printers
• Industrial Printing
• Flexographic Printing
• Dynamic Grayscale Laser Marking and Coding
• Repair and Ablation
Medical
• Spectroscopy
• Phototherapy Devices
• Ophthalmology
• Direct Manufacturing
• Hyperspectral Imaging
• 3D Biometrics
• Confocal Microscopes
• Photo Therapy
• Hyper-Spectral Imaging
• 3D Machine vision and 3D Biometrics
Display
• 3D Imaging Microscopes
• Adaptive Illumination
• Augmented Reality and Information Overlay
• Optical Switching
• Infrared Scene Projection
