Introduction
Wavelength 363-420nm | 1024*768 resolution | 13.68µm micromirror pitch | Three versions available for sales: ultra-high speed version, smart ultra-high speed version and super capacity version | The ultra-high speed version features 16GByte/128Gbit memory and ultra-high speed frame rate > 27KHz | The smart ultra-high speed version features built-in smart algorithm | The super capacity version features optional on-board SSD storage at minimum 2TB.

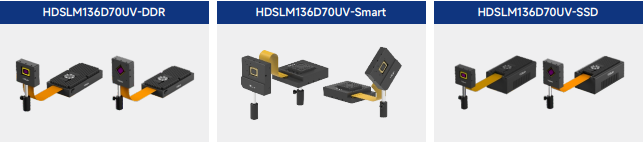

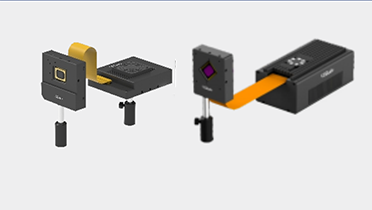

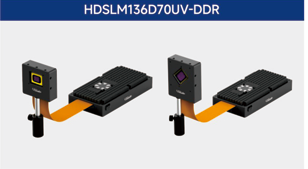

Product Image
Specification
| Type | HDSLM136D70UV-Smart | HDSLM136D70UV-SSD | HDSLM136D70UV-DDR | |
| Resolution | 1024*768 | |||
| Micromirror Pitch | 13.68μm | |||
| Wavelength | 363-420nm | |||
| Array Diagonal Size | 0.7” | |||
| Micromirror Array Optical Efficiency | 85% | |||
| Reflectivity | 88% | |||
| Fill Factor | 92% | |||
| Frame Rate | 27995Hz/657Hz/3Hz | |||
| RAM Capacity | / | SSD 2T/4T/8T | / | |
| Input Interface | USB3.0 | Gigabit Ethernet/USB3.0 | USB3.0 | |
| DMD Datum Angle | Horizontal design | Horizontal design/Oblique 45° design | Horizontal design/Oblique 45° design | |
| Mounting angle | Screen can be rotated 45° for mounting | / | Screen can be rotated 45° for mounting | |
Application
Industrial
• Digital imaging lithography
• Laser marking
• LCD and OLED repair
• Computer-to-plate printers
• SLA 3D printers
• 3D scanners for machine vision and factory automation
• Flat panel lithography
• Direct Imaging Lithography
• Rapid Prototyping Machines
Medical
• Phototherapy devices
• Ophthalmology
• Direct manufacturing
• Hyperspectral imaging
• 3D biometrics
• Confocal microscopes
• Photo Therapy
Display
• 3D imaging microscopes
• Adaptive illumination
• Augmented reality and information overlay
