Introduction
3.6μm ultra-small pixels, 25cm ultra-long FPC cable design, satisfy the needs of multiple splicing, applied to optical information processing, holographic reproduction,
light field display and other fields, high design flexibility as well as ease for installation.
The UPOLabs 4K resolution SLM is designed to achieve 60Hz three-color timing refresh, 180Hz monochrome refresh rate and large visual field (specific wavelength ＞ 10 °).
The HDSLM36R Series is currently a commercial phase-modulation SLM with quite small pixel size.

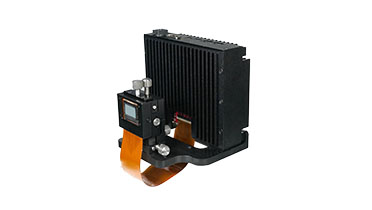

Product Image
Specifications
| Type | Modulation Mode | Resolution | Frame Rate | Pixel Size | Bit Depth | Fill Factor | Amplitude Contrast | Phase Retardance | Wavelength |
| HDSLM36R | Phase | 4096*2240 | 180Hz | 3.6μm | 8bit | ＞90% | / | ＞2.1π@670nm | 420~670nm |
| HDSLM36R-TEC | ＞2π@1550nm | 1550±100nm | |||||||
| HDSLM36RA | Amplitude | 1000:1 | / | 420~670nm |
Application

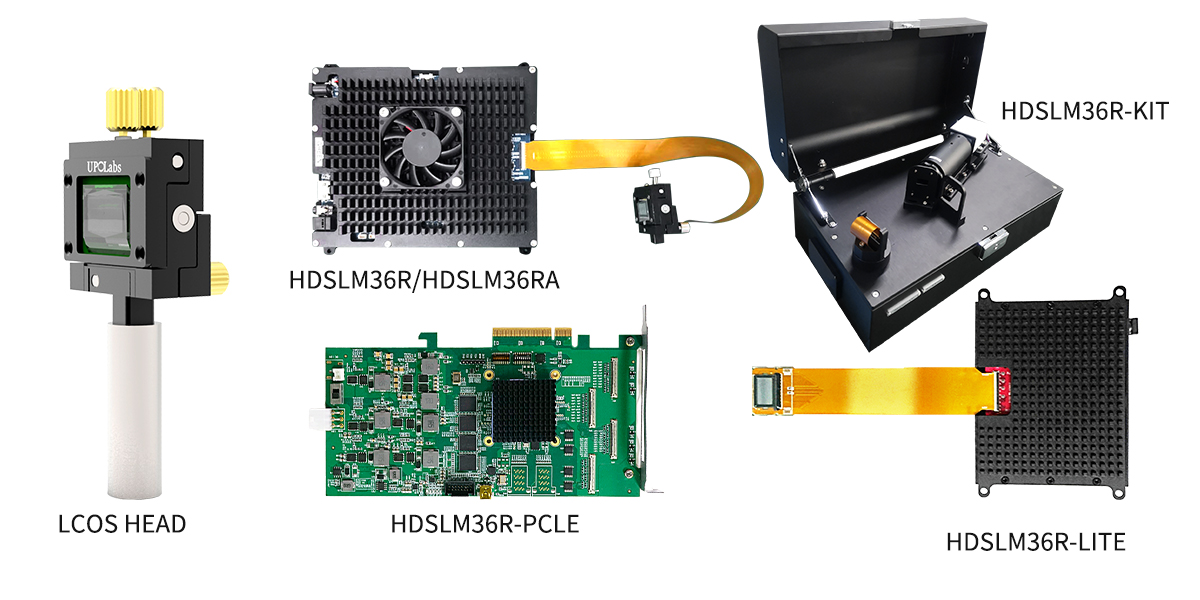

HDSLM36R / HDSLM36RA High-speed Basic Version
LCoS optical chip section is adjusted leftwards and rightward as well as tilted upwards and downwards
Long FPC data line, LCoS optical chip part is small and easy for integration
High space bandwidth product, high imaging resolution
HDSLM36R- Lite High Speed Compact Version
FPC cable is designed in a removable mode
Separated-structure design with small control panel for compact space
HDSLM36R- Kit High Speed Holographic Kit
Integrated design, avoid light path setup
Plugged-in available
HDSLM36R- PCIe PCIe multichannel
One driver integrated with 4 LCoS heads
Applicable for splicing 8K4K applications, supports splicing control up to 16K8K
Applicable for multi-SLM cascade optical computing applications with hybrid amplitude-phase modulation
Separated structure design
Application
• Optical field control
• Beam deflection
• Optical Add-Drop Multiplexer
• Free space optical communication
• Ultra-high resolution imaging
• Laser processing /3D printing
• Computational holography
• Holographic projection
• Holographic storage
