Introduction
3.8μm small pixel Compact size and integrated designHigh integration The LCoS screen allows adjustment leftwards and rightwards as well as pitch adjustment 1064nm
and 1550nm band coating versions are available Self-developed Gamma correction method to realize real-time Gamma and high linearity.

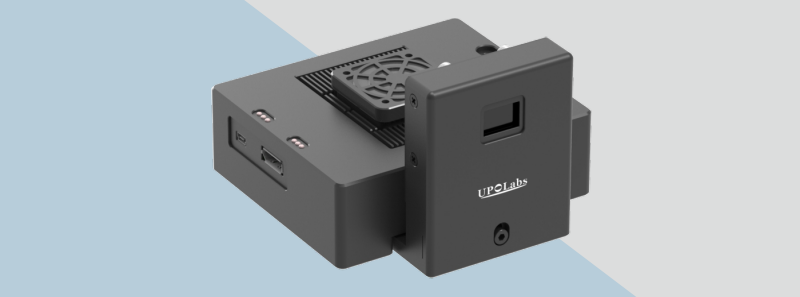

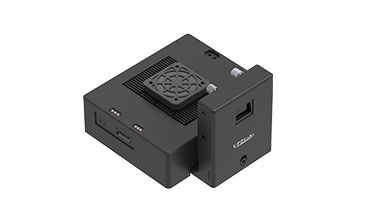

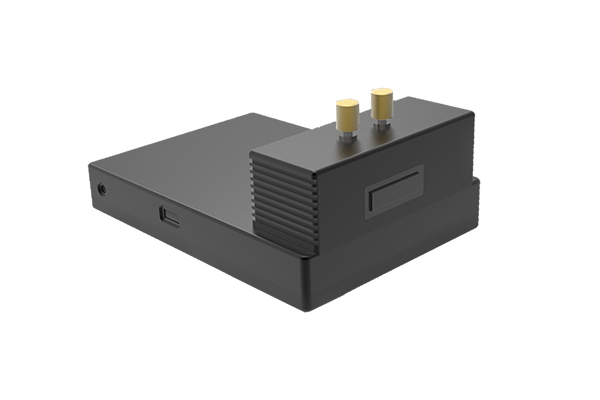

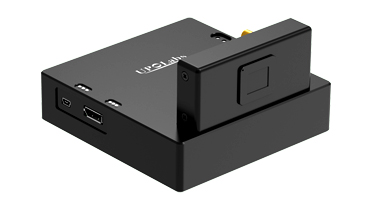

Product Image
Specifications
| Type | Modulation Mode | Resolution | Frame Rate | Pixel Size | Bit Depth | Fill Factor | Amplitude Contrast | Phase Retardance | Wavelength |
| HDSLM38R | Phase | 4096*2160 | 60Hz | 3.8μm | 8bit | ＞90% | / | ＞6.7π@450nm | 420~1100nm |
| HDSLM38R-NIR | ＞2π@1064nm | 1064±100nm | |||||||
| HDSLM38R-TEC | ＞2π@1550nm | 1550±100nm | |||||||
| HDSLM38RA | Amplitude | 1000:1 | / | 420~1100nm |
Application
· Optical field modulation
· Holographic projection
· Laser processing / 3D printing
· Optical interpolation multiplexing
· Computational holography
· Beam deflection
Thesis
1. Wuhan University: Holographic research and metasurface micro/nano structure research.
2. China University of Geosciences: Research on Light Field Regulation.
3. Xi 'an Jiaotong University: Beam Control and beam Deflection Research.
4. Holographic Display experiment case of Hefei University of Technology.
