Introduction
HDSLM45R , 1080P HD large resolution, 4.5um small pixel, 180Hz high refresh rate,
large diffraction angle, supports phase modulation in visible band >2π.

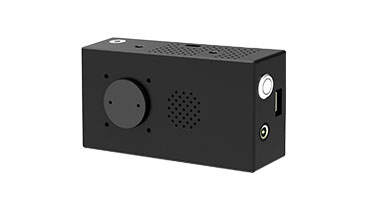

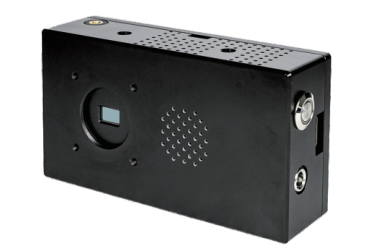

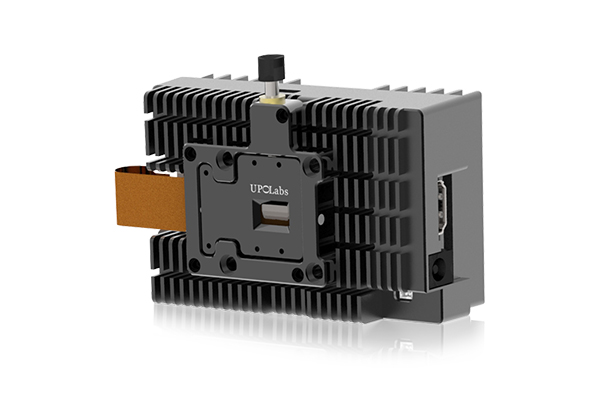

Product Image
Specifications
| Type | HDSLM45R |
| Modulation Mode | Reflective LCoS(Phase Only) |
| Pixel Size | 4.5μm |
| Resolution | 1920*1080 |
| Frame Rate | 180Hz |
| Bit Depth | 8bit |
| Fill Factor | 91% |
| Phase Retardance | ＞2.1π@650nm |
| Wavelength | 420~700nm |
| Amplitude Contrast | \ |
Features
- 1080P resolution
- Small pixel of 4.5um
- Large diffraction angle
- Color mode of 60Hz
- Color gray mode of 180Hz
- Phase modulation of visible light wavelength > 2π
- Small size
- Easy integration
Availability
Supply Information:This model is available off-the-shelf, with support for on-site demonstration and evaluation, pure phase modulation, and comes standard as a research grade product.
For commercial development or board level products please contact us.
Featured Design
Diffraction viewing angle is large, the mounting base adopts an integrated design, and can be equipped with a dedicated three-dimensional pitch adjustment frame to increase system stability and ease of use. It is equipped with RGB external trigger signal, which can be directly connected to RGB laser or LED light source, which is convenient for integration.
Application
- Optical field regulation
- Holographic projection
- Commercial projection optical machine development
- Holographic module development
- Special dimming field
- Vortex beam
- 3D display
- Holographic reproduction
- Laser regulation
- Multi-spectral imaging
- Physical science optical experiments
- AR equipment development
- Computational imaging and coherent diffraction
- Projection imaging and structured light

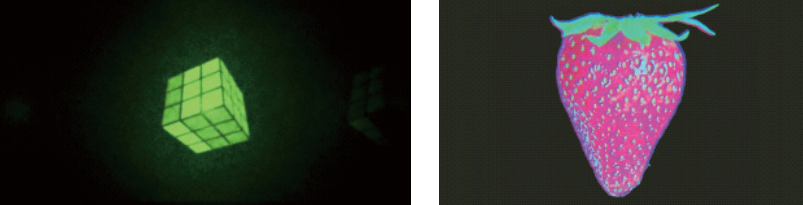

Holographic Case
