Introduction
The version of wavelength 420-700nm, 2048*1200 resolution, 5.4μm micromirror pitch.

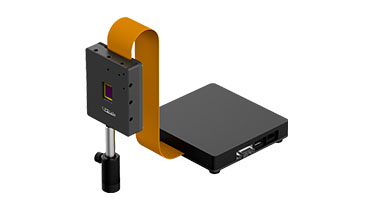

Product Image
Specifications
| Type | HDSLM54D50 |
| Resolution | 2048*1200 |
| Micromirror Pitch | 5.4μm |
| Wavelength | 420-700nm |
| Array Diagonal Size | 0.5” |
| Micromirror Array Optical Efficiency | 84% |
| Reflectivity | 88% |
| Fill Factor | 93% |
| Frame Rate | 16100Hz/2016Hz/1008Hz |
| Bit Depth | 1-16bit |
| Onboard Storage | / |
| RAM Capacity | 512Mbit*2 |
| Configure Interface | HDMI/DP |
| Input Interface | USB1.1 |
| DMD Datum Angle | Horizontal design |
Application
Industrial
• Direct Imaging Lithography
• Digital Imaging Lithography
• Flat Panel Lithography
• Laser Marking
• Digital Plate making
• LCD and OLED Repair
• Computer to Plate Printers
• SLA 3D Printers
• 3D Scanners for Machine Vision and Factory Automation
• Selective Laser Sintering (SLS)
• Rapid Prototype Machines
• 3D Printers
• Industrial Printing
• Flexographic Printing
• Dynamic Grayscale Laser Marking and Coding
• Repair and Ablation
Medical
• Spectroscopy
• Phototherapy Devices
• Ophthalmology
• Direct Manufacturing
• Hyperspectral Imaging
• 3D Biometrics
• Confocal Microscopes
• Photo Therapy
• Hyper-Spectral Imaging
• 3D Machine vision and 3D Biometrics
Display
• 3D Imaging Microscopes
• Adaptive Illumination
• Augmented Reality and Information Overlay
• Optical Switching
• Infrared Scene Projection
