HDSLM756D65
The HDSLM756D65 Spatial Light Modulators (SLMs) are designed with the DLP6500FYE. They feature a resolution of 1920*1080, a diagonal array of 0.65 inches, and a micromirror spacing of 7.56μm.

Contact us ：sales@realic.cn

Introduction

Wavelength 420-700nm | 1920*1080 resolution | 7.56µm micromirror pitch

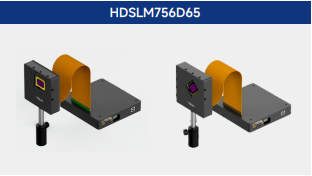

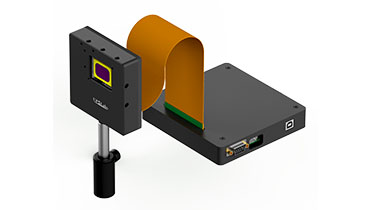

Product Image



Specifications

TypeHDSLM756D65
Resolution1920*1080
Micromirror Pitch7.56μm
Wavelength420-700nm
Array Diagonal Size0.65”
Micromirror Array Optical Efficiency86%
Reflectivity88%
Fill Factor92%
Frame Rate9523Hz/247Hz
Bit Depth1-8bit
Onboard Storage/
RAM Capacity384Mbit
Configure InterfaceHDMI/DP
Input InterfaceUSB1.1
DMD Datum AngleHorizontal design/Oblique 45° design


Advantage Application

Industrial

• Machine Vision and Quality Control

• 3D Scanners for Machine Vision and Quality Control

• 3D Printing

• Direct Imaging Lithography

• Laser Marking and Repair

Medical

• Ophthalmology

• 3D Scanners for Limb and Skin Measurement

• Hyper-Spectral Imaging

• Hyper-Spectral Scanning

Displays

• 3D Imaging Microscopes

• Intelligent and Adaptive Lighting
