HDSLM756D90
Introduction
Wavelength 400-700nm | 2560*1600 resolution | 7.56µm micromirror pitch | Two versions available for sales: ultra-high speed version and super capacity version | The ultra-high speed version features 16GByte/128Gbit memory and ultra-high speed frame rate > 11KHz | The super capacity version features optional on-board SSD storage at minimum 3TB.

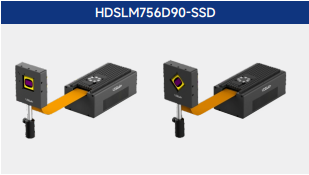

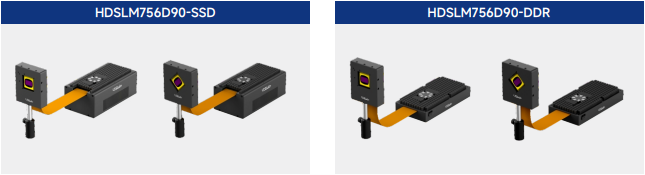

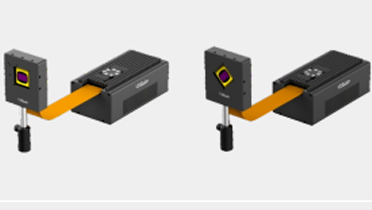

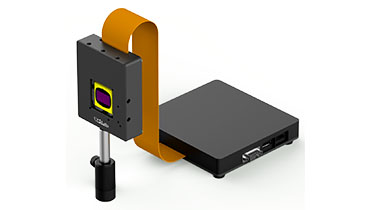

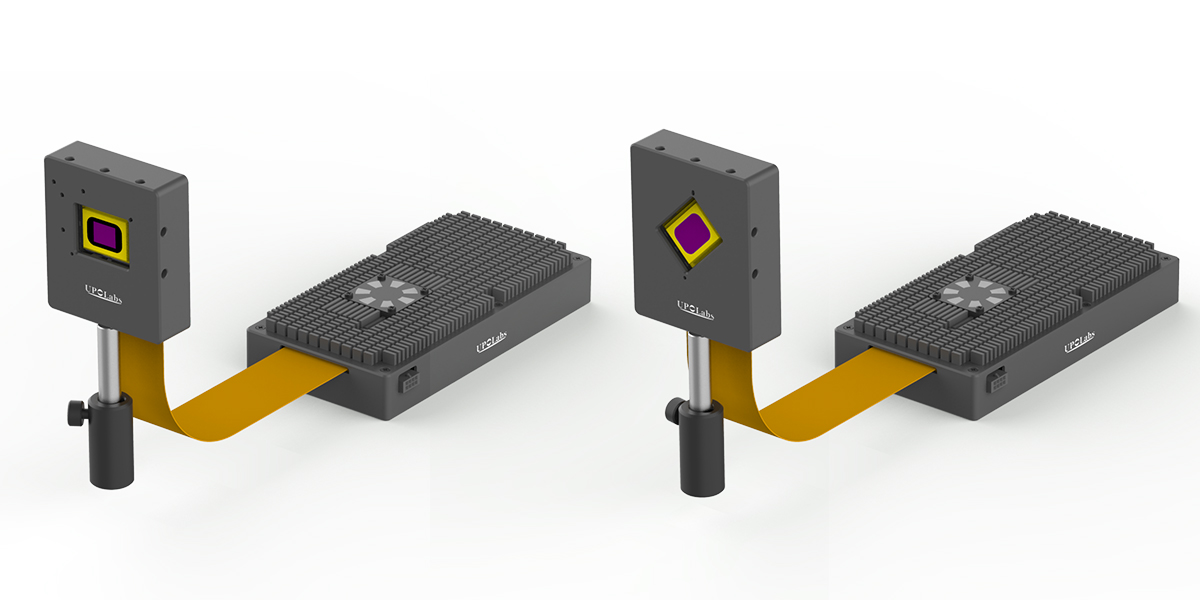

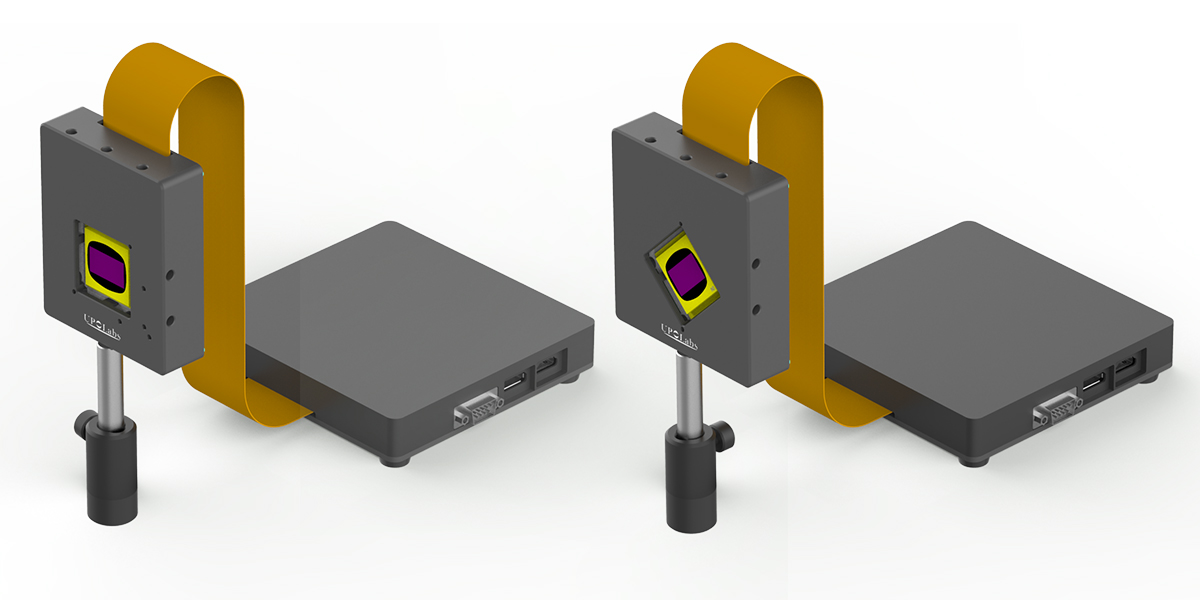

Product Image
Specifications
| Type | HDSLM756D90-SSD | HDSLM756D90-SSD | |
| Resolution | 2560*1600 | ||
| Micromirror Pitch | 7.56μm | ||
| Wavelength | 400-700nm | ||
| Array Diagonal Size | 0.9” | ||
| Micromirror Array Optical Efficiency | 86% | ||
| Reflectivity | 88% | ||
| Fill Factor | 92% | ||
| Frame Rate | 11764Hz/522Hz/3Hz | ||
| Bit Depth | 1-16bit | ||
| Input Interface | Gigabit Ethernet/USB3.0 | USB3.0 | |
Application
Industrial
• Machine Vision and Quality Control
• 3D Scanners for Machine Vision and Quality Control
• 3D Printing
• Direct Imaging Lithography
• Laser Marking and Repair
Medical
• Ophthalmology
• 3D Scanners for Limb and Skin Measurement
• Hyper-Spectral Imaging
• Hyper-Spectral Scanning
Displays
• 3D Imaging Microscopes
• Intelligent and Adaptive Lighting
