Introduction
Compared with HDSLM80R series, HDSLM80R Plus series feature in 10bit /1024 grey scale, one click to switch between 8bit/10bit, image switching synchronous pulse, programmed control GPIO,

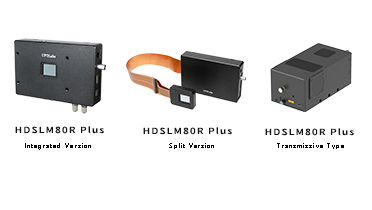

built-in zero level deviation. We provide three structure versions for HDSLM80R Plus series: integrated, separated, and transmissive structure (customization required).
Specifications
| Type | Modulation Mode | Resolution | Frame Rate | Pixel Size | Bit Depth | Fill Factor | Amplitude Contrast | Phase Retardance | Wavelength |
| HDSLM80R Plus | Phase | 1920*1200 | 60Hz | 8μm | 8bit/10bit | ＞95% | / | ＞5.8π@532nm | 420~1100nm |
| HDSLM80R Plus-NIR | ＞2π@1064nm | 1064±100nm | |||||||
| HDSLM80R Plus-TEC | ＞2π@1550nm | 1550±100nm | |||||||
| HDSLM80R Plus-G | / | 532±50nm | |||||||
| HDSLM80RA Plus | Amplitude | 1000:1 | / | 450~700nm |
Phase stability: 0.0003π@24h ;Linearity: 99.9% [Test method: power test demodulation phase, 25℃ ambient temperature, 532nm laser source]
Features

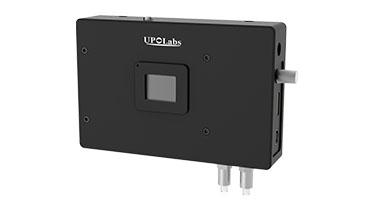

 | • HDSLM80R Plus Integrated Version Small size for easy integration Adjustable LCoS optical module by theangle of pitched up and pitched down Rise-fall main SLM unitBuilt-in water cooling |

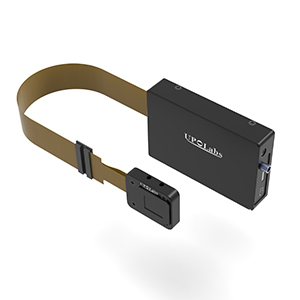

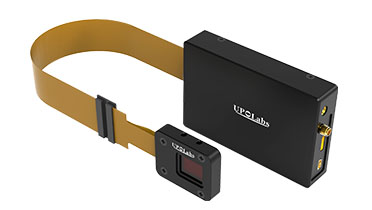

 | • HDSLM80R Plus Split Version SLM screen is designed separated fromthe power driver board for a flexibleoptical path Good thermal stability |

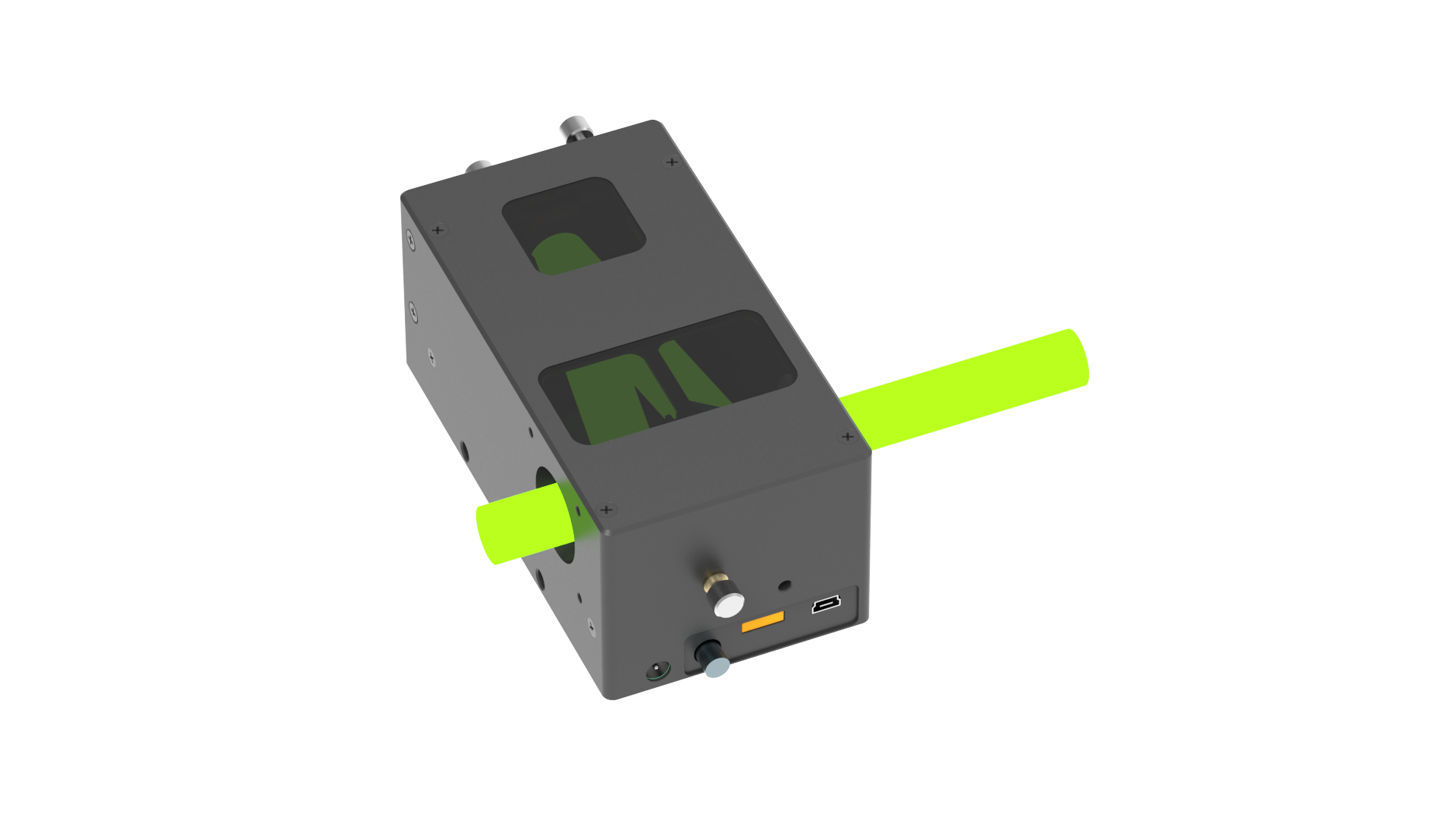

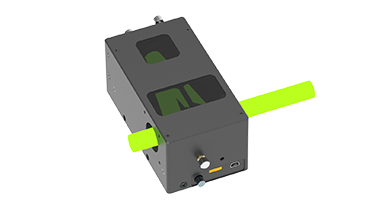

 | • HDSLM80RT Transmissive Type (Customization required ) Avoid repeated commissioning, one-stop optical path setup Coaxial version of incident outgoing optical path based on Plus Innovative structural design, easy to use |
Advantage Application
• Laser processing
• Projection lithography
• Holographic applications
• Light field regulation
• Lasers
• Microscopes
• Optical network neural computing and other fields.
Thesis
《Partitionable High-Effificiency MultilayerDiffractive Optical Neural Network》Sensors 2022, 22, 7110.
